C,Z,& U Purline Machine

C,Z,& U Purline Machine

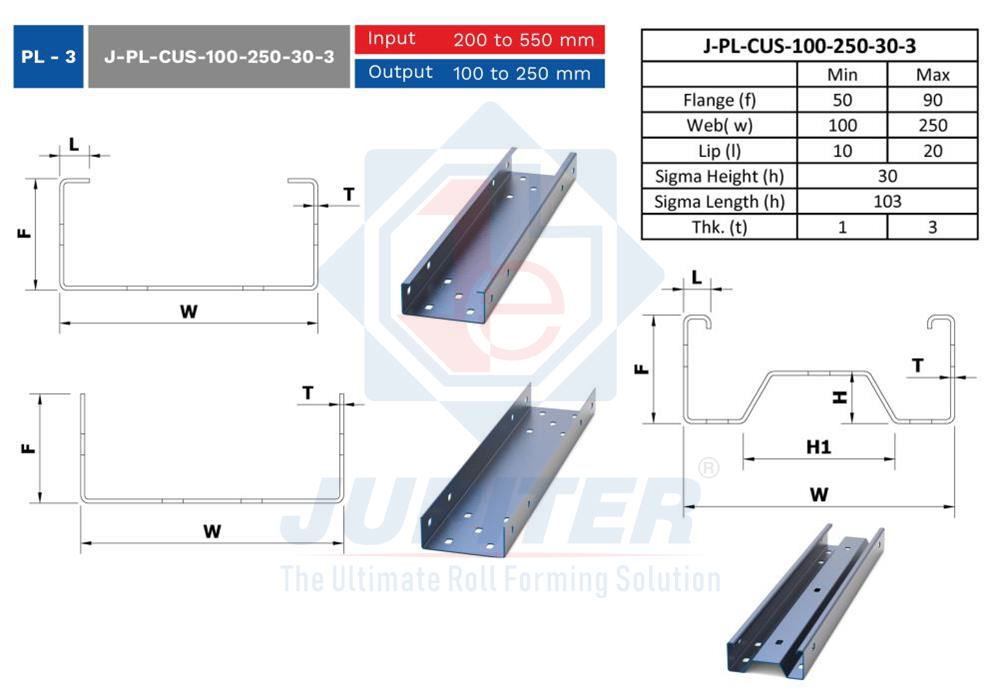

The C-Z purlin machines are specifically used to manufacture multi-size C and Z purlin channels, we manufacture Semi-automatic and Automatic both types of C-Z interchangeable Purlin Machines. The C and Z purlin produced by these machines are of high quality and scratch less material, and is best suited for sized from 70mm-300mm width with maximum 3 mm of thickness. The Machine's parts are all made with precision and experienced personals, with optimum quality roll tools so you never have to worry about the quality. The Roll tools are carved in highly precise CNC machines which gives the best quality and long life as they are hard chromed up to 40 Microns.

Type of material to be processed HR | CR | GI | Zink Alu. (550 MPA)
No. of Station 18
Max. Width of Coil 400 mm
Min. Width of Coil 120 mm
Max. Thickness of Coil 3 mm
Min. Thickness of Coil 1 mm
Max. Weight of Coil 5 Ton
Total Power 40 H. P.
Variable Line Speed 0 TO 25mtr. /min. (Without cutting & punching)
Automation level in performance P.L.C. CONTROLLED LENGTH
Material Loading/Unloading HYDRAULIC
Accuracy Level LENGTH +/-2 M.M.
BEND&TWIST +/- 2 MM in 6 MTR.
