Trapezoidal Profile Machine

Trapezoidal Profile Machine

Roll forming is continuous bending operation in which a long strip of metal sheet (usually steel coils, like PPGI, PPGL, GI, PPGL, BGL, Aluminum etc.) passes through sets of rolls mounted on consecutives stand each set performing only an incremental part of the bend, until the desired cross-section profile is obtained. Roofing sheet roll forming machine consists of an automatic Decoiler feeding guide, roll forming unit, hydraulic cutter with PLC base control system. We are involved in offering a wide array of color sheet making machine that is manufactured using high grade raw material and the latest technology with the set universal standards. These products are available in various specifications and can be customized as per variegated demands of our prestigious clients. Highest output speeds up you 30-40 meters per minute results in at least 10-15 times higher production. Maximum utilization of your investment practically any shape can be formed with uniform cross sections. Any complicated Shape Profile can be formed on our roll forming. Accuracy and consistency in Shape & dimension can be achieved. Reduced delivery period to meet your production needs quickly. We develop Roll Forming Line & Roll Tooling on our most modern software up grated with our enriched experience and technology. We have in-house CNC & VMC machining centers to produce roll tools with our own quality control and check.





Technical Specification of Roofing Sheet Roll Forming Line
Specification Input Up To 1220 mm Roofing Sheet Machine Input Up To 1450 mm Roofing Sheet Machine
Machine Name VIRAT TEJAS AGNI BRAMHOS VIRAT + TEJAS + AGNI + BRAMHOS +
Model No. JRF-RMSD61?18 JRF-RMSD62522 JRF-R MSD62822 JRF-R MSD64522 JRF-RMSD71220 JRF- RMSD72524 JRF-RMSD72824 JRF-RMSD74524
Input Width 900 to 1300mm 900 to 1300mm 900 to 1300mm 900 to 1300mm 900 to 1500mm 900 to 1500mm 900 to 1500mm 900 to 1500mm
(4 Feet) (4 Feet) (4 Feet) (4 Feet) (5 Feet) (5 Feet) (5 Feet) (5 Feet)
OutPut Width 3.25 Feet 3.25 Feet 3.25 Feet 3.25 Feet 4 Feet 4 Feet 4 Feet 4 Feet
(6 Rib) (6 Rib) (6 Rib) (6 Rib) (6 Rib & 7 Rib) (6 Rib & 7 Rib) (6 Rib & 7 Rib) (6 Rib & 7 Rib)
Decoiler Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic
Decoiler Capac"ty 5 Ton 5 Ton 5 Ton 10 Ton 10 Ton 10 Ton 10 Ton 10 Ton
Flim Guaed attachment NA y y y NA y y y
Back Side Liner Cutter Manual y y y Manual y y y
RollForming Station 18 22 22 22 20 24 24 24
Speed(Without Cutting) 12MPM 20MPM 28MPM 45MPM 12MPM 20MPM 28MPM 45MPM
RollMaterial EN-31 EN-31 EN-31 EN-31 EN-31 EN-31 EN-31 EN-31
Shaft Material EN-8 EN-8 EN-8 EN-8 EN-8 EN-8 EN-8 EN-8
Per Hour Production 1 Ton 2 Ton 3 Ton 4 to 5 Ton 1 Ton 2 Ton 3 Ton 4 to 5 Ton
Hydraulic Shearing y y y NA y y y NA
Flaying Shearing NA NA NA y NA NA NA y
Run Out Table y y y NA y y y NA
Auto Stracker NA Optional Optional y NA Optional Optional y
We are Offer below optional accessories for above said Roll Forming Machine as applicable
Tile Press y y y NA y y y NA
Auto Stacker NA y y y NA y y y
CoilCar y y y y y y y y
Telescopic Full Guard y y y y y y y y
GSM Module v v v v v v v v
Length 45 Ft. 55 Ft. 55 Ft. 100 Ft. 45 Ft. 55 Ft. 55 Ft. 100 Ft.
Width 12 Ft. 12 Ft. 12 Ft. 12 Ft. 12 Ft. 12 Ft. 12 Ft. 12 Ft.
Height 4 Ft. 5 Ft. 5 Ft. 5 Ft. 4 Ft. 5 Ft. 5 Ft. 5 Ft.

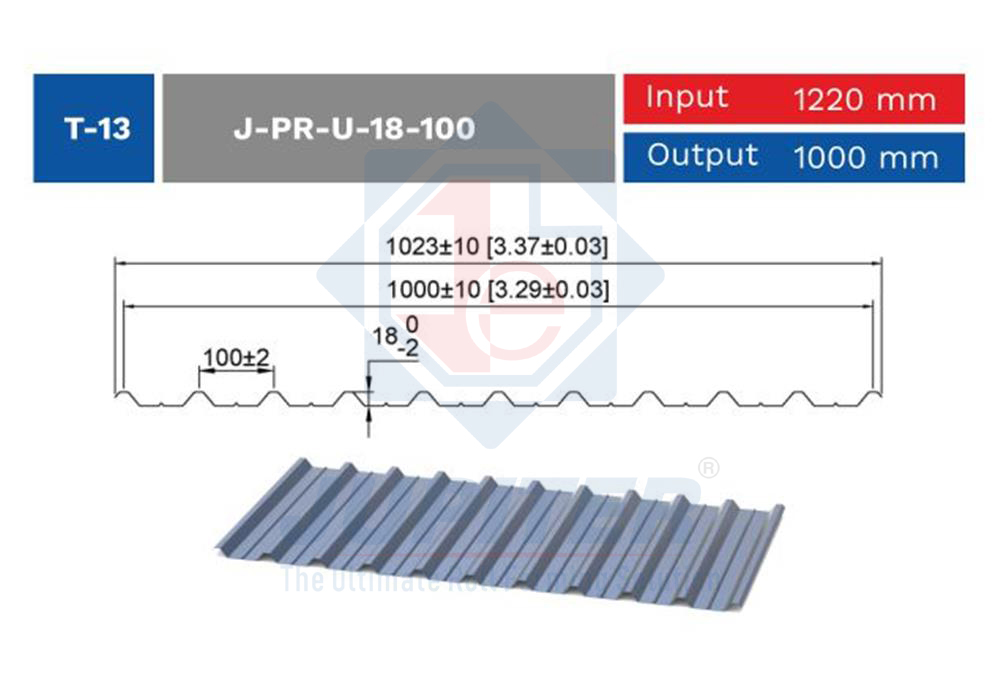

  • T1 1200
  • T1 1450
  • T2 1220
  • T2 - 1450
  • T2 - 1450
  • T2 - 1450
  • T2 - 1450
  • T2 - 1450
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
  • T
