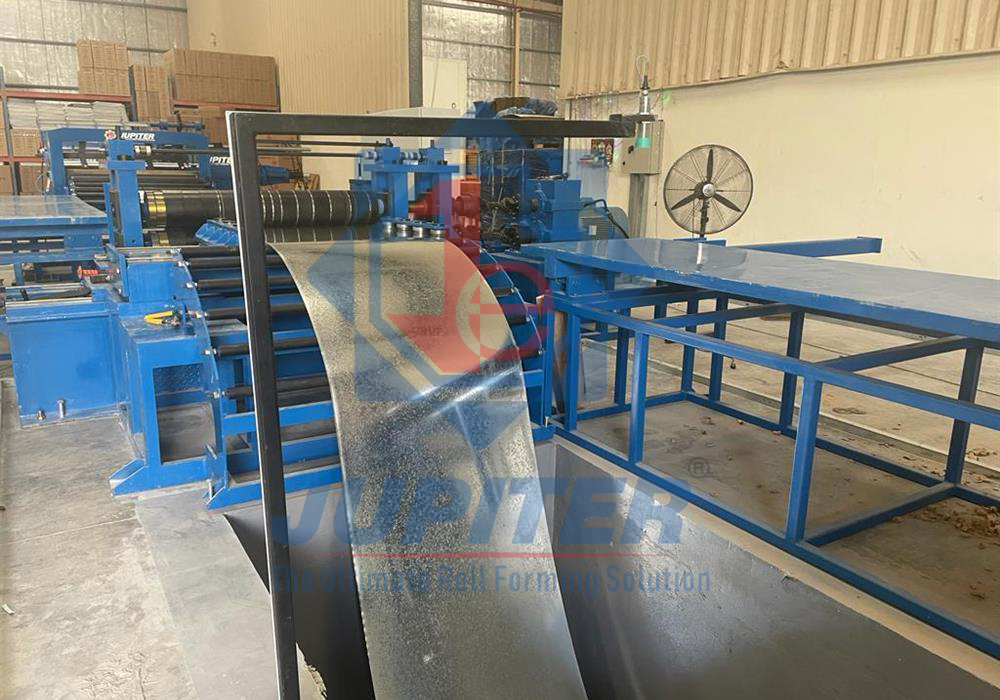

Slitting Line Machine

Slitting Line Machine

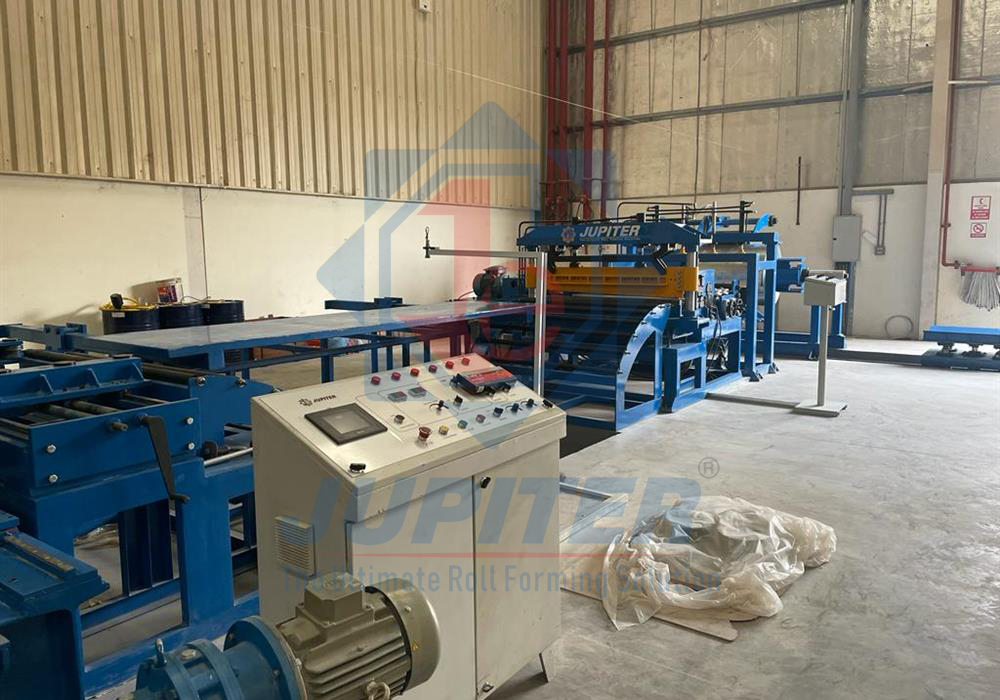

This line can be adjusted to do recoiling or dividing work to meet customers' demands. PLC system is used to select the information from every part of the line, centrally controlled. There also has speed self-adjusted and keep memory after lost power supply function. So the line has efficient performance.

The line has, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, aluminum coil, galvanize coil or painted coil.

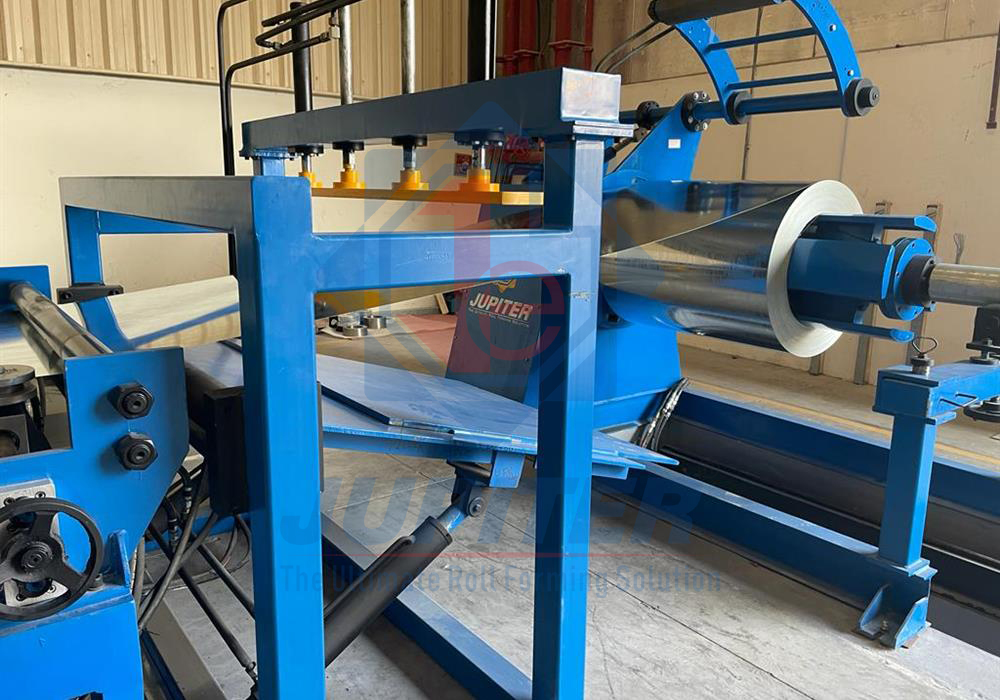

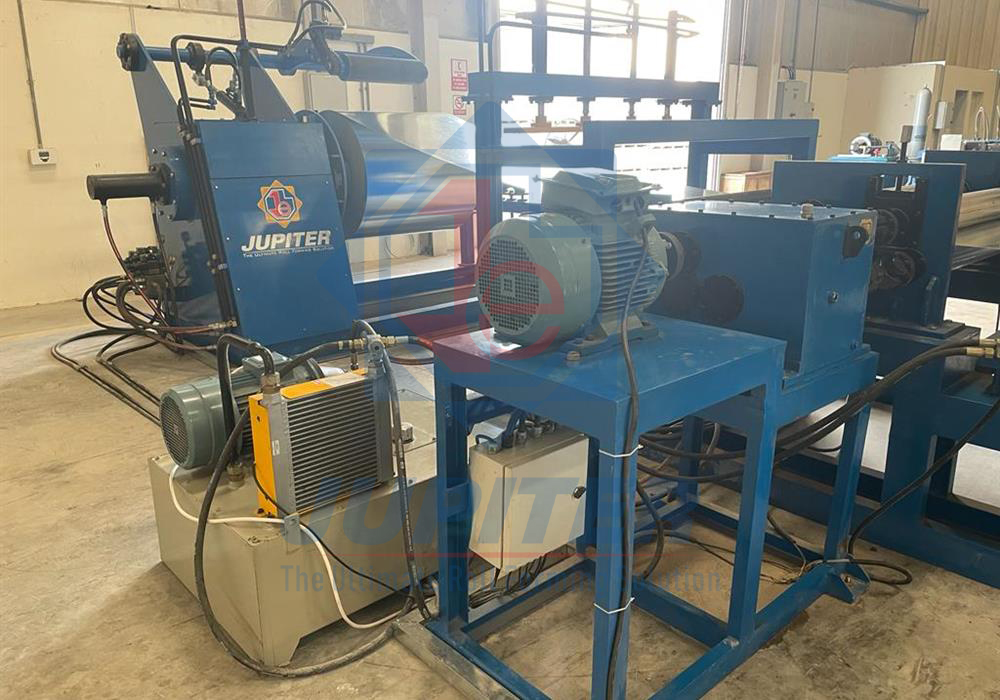

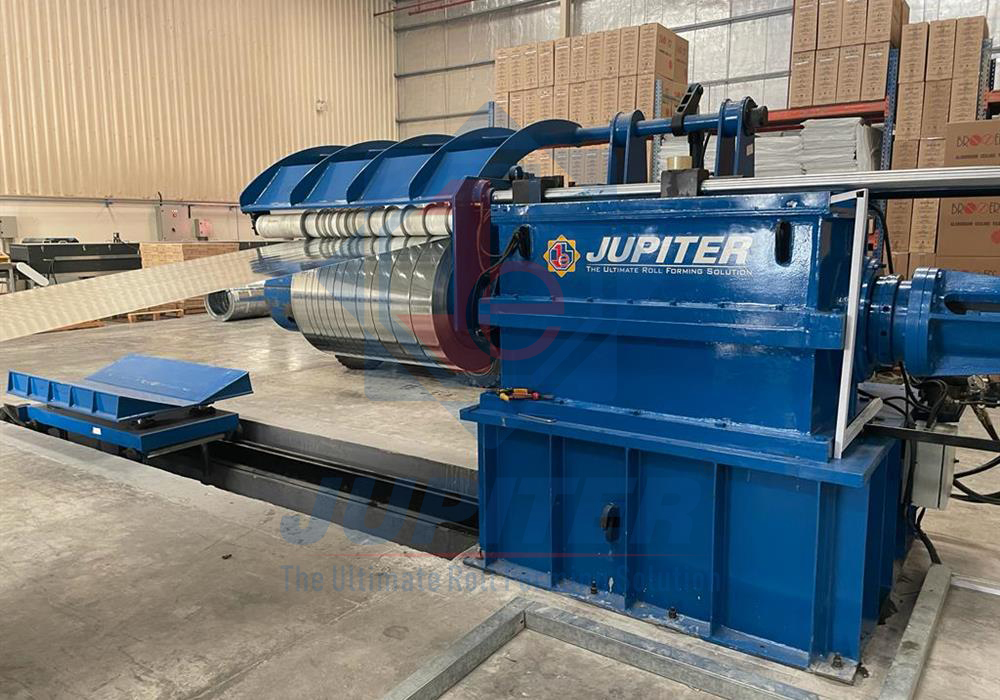

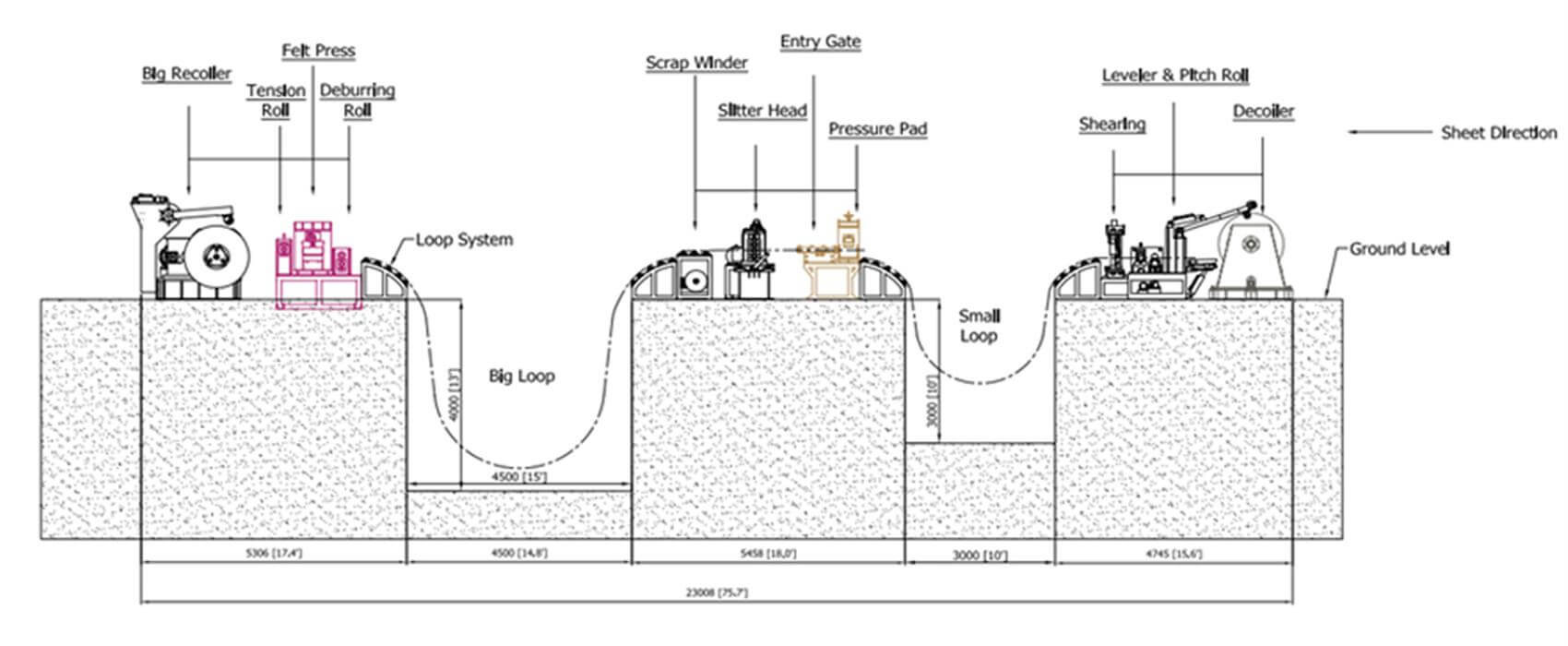

This line is composed of coil car, uncoiled, slitter, scrap winder, shearer cutting coil head or tail, tension pad and recoiled, etc. As well as pendulum middle bridge, pinch device, steering device. This line is an auto coil processing equipment which integrates mechanical, electrical, hydraulic, and pneumatic all together. Like car, container, household appliance, packing, construction material, etc.

Type of material to be Processed HR / CR / GP
Yield Strength 550 MPA
Total power required 75 H.P.
Max. Width of Coil 1500 mm
Min. Width of Coil 300 mm
Max. Thickness of Coil 2.00 mm
Min. Thickness of Coil 0.40 mm
Max. Weight of Coil 10 Ton
Variable Line Speed : 0 TO 40 meter/min
Our Regular production program for slitting lines includes specially designed lines for:
  • Cold Rolled Coils
  • Hot Rolled Coils
  • CRGO/CRNGO Coils
  • Stainless Steel Coils

We have wide range of slitting lines to offer:

Slitting Line for Baby Coils
  • Coil Width: 500mm to 2000mm
  • Coil Thickness: 0.1 to up to 8 mm
  • Coil Weight: 3 ton up to 25ton
  • Line Speed: 10 up to 100MPM
