Floor Deck Machine

Floor Deck Machine

Floor decking roll forming machine is manually used to produce steel floor decking and can produce high quality floor decking has advantages, such as no cutting deformation, high strength and a large working load, it can be directly mixed with the steel mesh and concrete with good adhesion, Applied in High rise steel building, it can save the steel molding templates, and also reduce the floor load, Under the same capacity it can reduce the amount of steel to achieve cost saving.

Decking forming machine consists of uncoiler and its base, coil sheet guiding equipment, roll forming system post cutting equipment hydraulic statin PLC base controlling system, supporter table. The corrugated profile sheet produced by this machine has high strength big rib. Which adheres well to concrete. Its's best to be used as the floor of high buildings. And the cost for construction of floor is low.

High solid forming stand guarantees the stable forming and uniform high quality of final products.

Able to secure higher productivity since the management of the line is automated by controlling and electronic system.

Improved cutting method minimizes the tolerance of cutting length.

Type of material to be processed: GI/ CR
Total Connected Power required 40 KW
Max.Width of Coil 1300mm
Max.Width of Coil 500mm
Max.Thickness of Coil 2.00 mm(Emboss is Up to 1.6 MM)
Min.Thickness of Coil 0.80mm
Max.Weight of Coil 10000Kg.
Variable Line Speed 0 TO 10mtr/min (without cutting)
Automation level in performance P.L.C. CONTROLLED LENGTH
Accuracy Level LENGTH: +/-2 M.M

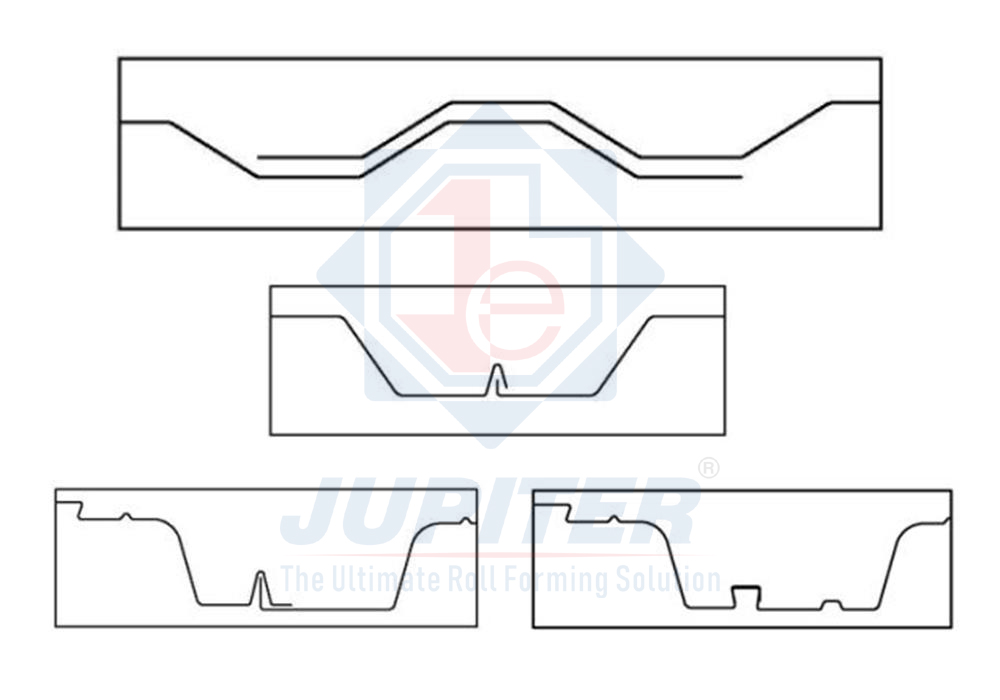

  • DP
