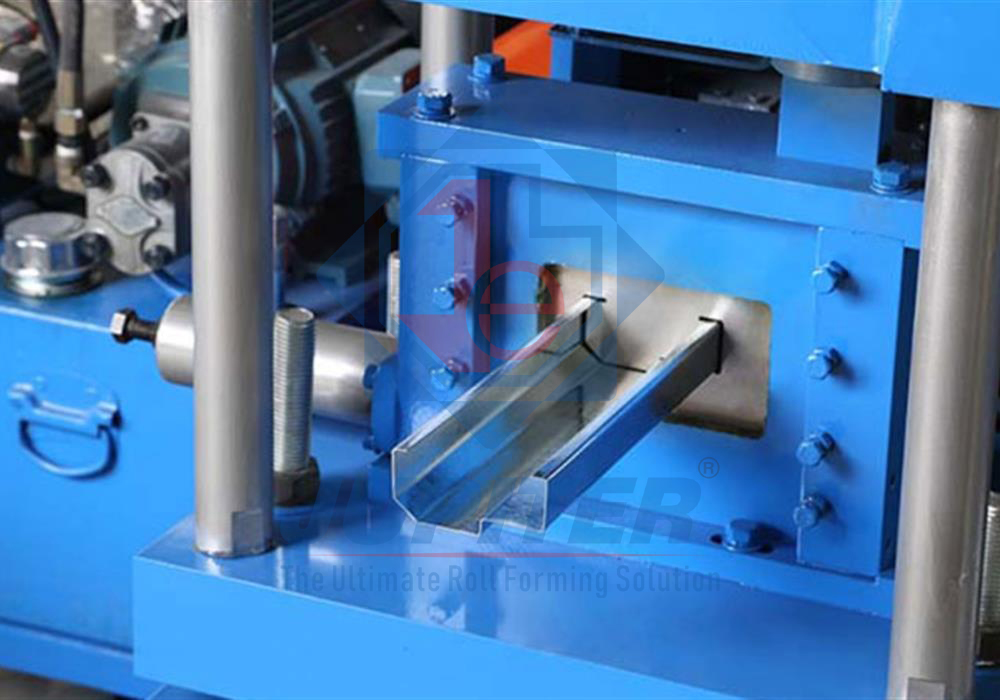

Door Frame Machine

Door Frame Machine

The Door Frame Roll Forming Machine Curved Door Frame Roll Forming Machine, Straight Door Frame Roll Forming Machine, Door Plank Roll Forming Machine etc. We offer any kinds of door frame roll forming machines according to your profile drawing.

Type of material to be processed H.R. / C.R. / Galvanized
No. of Station 18
Max. Width of Coil 400 mm
Min. Width of Coil 150 mm
Max. Thickness of Coil 2 mm
Min. Thickness of Coil 1 mm
Max. Weight of Coil : 2 ton.
Variable Line Speed 0 to 15 meter/min
Automation level in performance P.L.C. CONTROLLED LENGTH
Accuracy Level LENGTH: +/-2 M.M.
BEND/TWIST: 1.5 MM/MTR.
DIMN: +/- 2 M.M.
Accuracy level length: ±2 M.M.
